Cable Glands
We supply a comprehensive range of industrial and hazardous area cable glands (also known as cable fittings) for the smooth interconnection of cables and equipment.
This covers the full spectrum of cable, with applications from general industrial types through to safety, deluge, flameproof and explosion proof cable glands.
Our cable glands are designed to provide optimal systems integrity when used alongside our cables and form an integral part of our cable solutions. Depending on the application, we offer brass cable glands as well as stainless steel, aluminium, nylon, nickel, plastic and other materials. Our cable glands are generally supplied with other cable gland accessories including locknuts, O-rings, sealing washers, earthing washers, earth tags, shrouds, clamping modules, adaptors, reducers, and blanking plugs. These are available in both metric and PG threads, as well as for armoured and non-armoured cable applications.
Our cable glands adhere to the strictest national and international specifications including NEC, CEC, ATEX and IECEx.
More information
Cable Glands Portfolio
Some of our most popular cable glands include:
| Brass Gland | A2 | A2 brass cable glands are suitable for use with unarmoured cables. Their outer seal grips the sheath of the cable to achieve a weatherproof seal, hence their IP68 rating. |
| BW | AWA and SWA cable requires armoured cable glands. BW brass cable glands are suitable for use with steel wire armoured cables on indoor applications. These SWA cable glands have no loose parts in their construction which allow for easy installation. | |
| CX | CX brass cable glands are suitable for use with braided cables providing electrical continuity for the cables’ wire braid. | |
| CXT | CXT brass cable glands are suitable for use with all types of screened flexible wire braid and wire braid armoured cables. These glands provide mechanical cable retention and electrical continuity | |
| CW | CW brass cable glands are suitable for use with steel wire armoured cables on outdoor applications. Their outer seal grips the cable sheath to achieve weatherproof seal. A separate armour lock ring ensures armour clamping. | |
| Nickel plated glands | MS | A standard grade nickel-plated brass gland which is IP68 rated. This waterproof cable gland's seal prevents ingress of dust and water, suitable for immersion. The MS Gland is suitable for use in environments demanding high levels of chemical and mechanical stability including measurement and control applications. |
| EMC | Nickel plated EMC glands are ideal for watertight applications. Their high quality finish makes them suitable for plant machinery and control equipment. These are known as SY cable glands and CY cable glands, and should only be used for applications with these control cables. | |

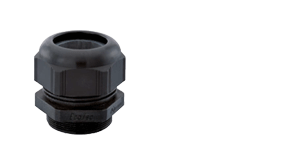

| Nylon glands | PA | A standard grade polyamide metric gland (plastic cable gland) manufactured with IP68 watertight and dust-tight rating. They are supplied with a neoprene seal to reduce the gland diameter where applied to smaller size cables. |
For more information on cables for specific applications or industries, such as rail cable glands, contact our technical team.
Cable Glands PG Size Conversion Table
| Nominal thread size | Outer diameter | Threads per inch (TPI) | Pitch | Inner diameter | Cable diameter |
|---|---|---|---|---|---|
| PG7 | 12.5mm / 0.492in | 20 | 1.270mm / 0.05in | 11.28mm / 0.444in | 3- 6.5mm / 0.118 - 0.256in |
| PG9 | 15.5mm / 0.610in | 18 | 1.4112mm / 0.05556in | 13.86mm / 0.546in | 4 - 8mm / 0.157 - 0.315in |
| PG11 | 18.6mm / 0.732in | 18 | 1.4112mm / 0.05556in | 17.26mm / 0.680in | 5 - 10mm / 0.197 - 0.394in |
| PG13.5 | 20.4mm / 0.803in | 18 | 1.4112mm / 0.05556in | 19.06mm / 0.750in | 6 - 12mm / 0.236 - 0.472in |
| PG16 | 22.5mm / 0.886in | 18 | 1.4112mm / 0.05556in | 21.16mm / 0.833in | 10 - 14mm / 0.394 - 0.551in |
| PG21 | 28.3mm / 1.114in | 16 | 1.5875mm / 0.0625in | 26.78mm / 1.054in | 13 - 18mm / 0.512 - 0.709in |
| PG29 | 37.0mm / 1.457in | 16 | 1.5875mm / 0.0625in | 35.48mm / 1.397in | 18 - 25mm / 0.709 - 0.984in |
| PG36 | 47.0mm / 1.850in | 16 | 1.5875mm / 0.0625in | 45.48mm / 1.791in | 22 - 32mm / 0.866 - 1.26in |
| PG42 | 54.0mm / 2.126in | 16 | 1.5875mm / 0.0625in | 52.48mm / 2.066in | 30 - 38mm / 1.18 - 1.50in |
| PG48 | 59.3mm / 2.335in | 16 | 1.5875mm / 0.0625in | 57.78mm / 2.275in | 34 - 44mm / 1.34 - 1.73in |
Cable glands selection
As cable experts, Eland Cables' technical team is ideally positioned to provide technical support with the selection of the ideal gland solution to use alongside our cables. Our cable solutions include one of the most comprehensive selections of cable accessories in the industry, including custom designed glands on large-scale projects.
| Product name | Part No | Type | Sheath colour | Gland Size | Pack Quantity | Quantity | |
|---|---|---|---|---|---|---|---|
| Hummel PA Nylon Gland | HUMGECM16MNLBK0 | n/a | Black | M16 | 10 | ||
| Hummel PA Nylon Gland | HUMGECM16MNLGR0 | n/a | Grey | M16 | 10 | ||
| Hummel PA Nylon Gland | HUMGECM16SNLBK0 | n/a | Black | M16S | 10 | ||
| Hummel PA Nylon Gland | HUMGECM16SNLGR0 | n/a | Grey | M16S | 10 | ||
| Hummel PA Nylon Gland | HUMGECM20MNLBK0 | n/a | Black | M20 | 10 | ||
| Hummel PA Nylon Gland | HUMGECM20MNLGR0 | n/a | Grey | M20 | 10 | ||
| Hummel PA Nylon Gland | HUMGECM20SNLBK0 | n/a | Black | M20S | 10 | ||
| Hummel PA Nylon Gland | HUMGECM20SNLGR0 | n/a | Grey | M20S | 10 | ||
| Hummel PA Nylon Gland | HUMGECM25MNLBK0 | n/a | Black | M25 | 10 | ||
| Hummel PA Nylon Gland | HUMGECM25MNLGR0 | n/a | Grey | M25 | 10 | ||
| Hummel PA Nylon Gland | HUMGECM32MNLBK0 | n/a | Black | M32 | 10 | ||
| Hummel PA Nylon Gland | HUMGECM32MNLGR0 | n/a | Grey | M32 | 10 | ||
| Hummel PA Nylon Gland | HUMGECM40MNLBK0 | n/a | Black | M40 | 2 | ||
| Hummel PA Nylon Gland | HUMGECM40MNLGR0 | n/a | Grey | M40 | 2 | ||
| Hummel PA Nylon Gland | HUMGECM50MNLBK0 | n/a | Black | M50 | 2 | ||
| Hummel PA Nylon Gland | HUMGECM50MNLGR0 | n/a | Grey | M50 | 2 | ||
| Hummel PA Nylon Gland | HUMGECM63MNLBK0 | n/a | Black | M63 | 2 | ||
| Hummel PA Nylon Gland | HUMGECM63MNLGR0 | n/a | Grey | M63 | 2 | ||
| Hummel PA Nylon Gland | HUMGECM12MNLBK0 | n/a | Black | M12 | 10 | ||
| Hummel PA Nylon Gland | HUMGECM12MNLGR0 | n/a | Grey | M12 | 10 | ||
| PA Nylon Gland | FCGA216PLGR | n/a | Grey | M16 | 1 | ||
| PA Nylon Gland | FCGA220SPLGR | n/a | Grey | M20S | 1 | ||
| PA Nylon Gland | FCGA220PLGR | n/a | Grey | M20 | 1 | ||
| PA Nylon Gland | FCGA220LPLGR | n/a | Grey | M20L | 1 | ||
| PA Nylon Gland | FCGA232PLGR | n/a | Grey | M32 | 1 | ||
| PA Nylon Gland | FCGA240PLGR | n/a | Grey | M40 | 1 | ||
| PA Nylon Gland | FCGA250PLGR | n/a | Grey | M50 | 1 | ||
| PA Nylon Gland | FCGA263PLGR | n/a | Grey | M63 | 1 | ||
| PA Nylon Gland | FCGA216PLBK | n/a | Black | M16 | 1 | ||
| PA Nylon Gland | FCGA220SPLBK | n/a | Black | M20S | 1 | ||
| PA Nylon Gland | FCGA220PLBK | n/a | Black | M20 | 1 | ||
| PA Nylon Gland | FCGA220LPLBK | n/a | Black | M20L | 1 | ||
| PA Nylon Gland | FCGA232PLBK | n/a | Black | M32 | 1 | ||
| PA Nylon Gland | FCGA240PLBK | n/a | Black | M40 | 1 | ||
| PA Nylon Gland | FCGA250PLBK | n/a | Black | M50 | 1 | ||
| PA Nylon Gland | FCGA263PLBK | n/a | Black | M63 | 1 | ||
| PA Nylon Gland | FCGA216PLRD | n/a | Red | M16 | 1 | ||
| PA Nylon Gland | FCGA220SPLRD | n/a | Red | M20S | 1 | ||
| PA Nylon Gland | FCGA220PLRD | n/a | Red | M20 | 1 | ||
| PA Nylon Gland | FCGA220LPLRD | n/a | Red | M20L | 1 | ||
| PA Nylon Gland | FCGA216PLWH | n/a | White | M16 | 1 | ||
| PA Nylon Gland | FCGA220SPLWH | n/a | White | M20S | 1 | ||
| PA Nylon Gland | FCGA220PLWH | n/a | White | M20 | 1 | ||
| PA Nylon Gland | FCGA220LPLWH | n/a | White | M20L | 1 | ||
| Hummel MS Brass Gland | HUMGECM12MNP000 | n/a | n/a | M12 | 10 | ||
| Hummel MS Brass Gland | HUMGECM16MNP000 | n/a | n/a | M16 | 10 | ||
| Hummel MS Brass Gland | HUMGECM20MNP000 | n/a | n/a | M20 | 10 | ||
| Hummel MS Brass Gland | HUMGECM25MNP000 | n/a | n/a | M25 | 10 | ||
| Hummel MS Brass Gland | HUMGECM32MNP000 | n/a | n/a | M32 | 10 | ||
| Hummel MS Brass Gland | HUMGECM40MNP000 | n/a | n/a | M40 | 2 | ||
| Hummel MS Brass Gland | HUMGECM50MNP000 | n/a | n/a | M50 | 2 | ||
| Hummel MS Brass Gland | HUMGECM63MNP000 | n/a | n/a | M63 | 2 | ||
| Cable Gland CX | FCGCX20/16 | Brass | n/a | 20/16 | 2 | ||
| Cable Gland CX | FCGCX20S | Brass | n/a | 20s | 2 | ||
| Cable Gland CX | FCGCX20 | Brass | n/a | 20 | 2 | ||
| Cable Gland CX | FCGCX25 | Brass | n/a | 25 | 2 | ||
| Cable Gland CX | FCGCX32 | Brass | n/a | 32 | 2 | ||
| Cable Gland CX | FCGCX40 | Brass | n/a | 40 | 2 | ||
| Cable Gland CX | FCGCX50S | Brass | n/a | 50s | 2 | ||
| Cable Gland CX | FCGCX50 | Brass | n/a | 50 | 2 | ||
| Cable Gland CX | FCGCX63S | Brass | n/a | 63s | 2 | ||
| Cable Gland CX | FCGCX63 | Brass | n/a | 63 | 2 | ||
| Cable Gland CX | FCGCX75S | Brass | n/a | 75s | 2 | ||
| Cable Gland CX | FCGCX75 | Brass | n/a | 75 | 2 | ||
| Cable Gland CX | FCGCX90 | Brass | n/a | 90 | 2 | ||
| Cable Gland CXT | FCGCXT20/16 | Brass | n/a | 20ss | 2 | ||
| Cable Gland CXT | FCGCXT20S | Brass | n/a | 20s | 2 | ||
| Cable Gland CXT | FCGCXT20 | Brass | n/a | 20 | 2 | ||
| Cable Gland CXT | FCGCXT25 | Brass | n/a | 25 | 2 | ||
| Cable Gland CXT | FCGCXT32 | Brass | n/a | 32 | 2 | ||
| Cable Gland CXT | FCGCXT40 | Brass | n/a | 40 | 2 | ||
| Cable Gland CXT | FCGCXT50S | Brass | n/a | 50s | 2 | ||
| Cable Gland CXT | FCGCXT50 | Brass | n/a | 50 | 2 | ||
| Cable Gland BW | FCGBW20S | Brass | n/a | 20s | 2 | ||
| Cable Gland BW | FCGBW20 | Brass | n/a | 20 | 2 | ||
| Cable Gland BW | FCGBW25 | Brass | n/a | 25 | 2 | ||
| Cable Gland BW | FCGBW32 | Brass | n/a | 32 | 2 | ||
| Cable Gland BW | FCGBW40 | Brass | n/a | 40 | 2 | ||
| Cable Gland BW | FCGBW50S | Brass | n/a | 50s | 1 | ||
| Cable Gland BW | FCGBW50 | Brass | n/a | 50 | 1 | ||
| Cable Gland BW | FCGBW63S | Brass | n/a | 63s | 1 | ||
| Cable Gland BW | FCGBW60 | Brass | n/a | 60 | 1 | ||
| Cable Gland BW | FCGBW75S | Brass | n/a | 75s | 1 | ||
| Cable Gland BW | FCGBW75 | Brass | n/a | 75 | 1 | ||
| Cable Gland CW | FCGCW16 | n/a | Grey | M16 | 2 | ||
| Cable Gland CW | FCGCW20S | n/a | Grey | M20S | 2 | ||
| Cable Gland CW | FCGCW20 | n/a | Grey | M20 | 2 | ||
| Cable Gland CW | FCGCW25S | n/a | Grey | M25S | 2 | ||
| Cable Gland CW | FCGCW25 | n/a | Grey | M25 | 2 | ||
| Cable Gland CW | FCGCW32 | n/a | Grey | M32 | 2 | ||
| Cable Gland CW | FCGCW40S | n/a | Grey | M40S | 1 | ||
| Cable Gland CW | FCGCW40 | n/a | Grey | M40 | 1 | ||
| Cable Gland CW | FCGCW50S | n/a | Black | M50S | 1 | ||
| Cable Gland CW | FCGCW50 | n/a | Black | M50 | 1 | ||
| Cable Gland CW | FCGCW63S | n/a | Black | M63S | 1 | ||
| Cable Gland CW | FCGCW63 | n/a | Black | M63 | 1 | ||
| Cable Gland CW | FCGCW75S | n/a | Black | M75S | 1 | ||
| Cable Gland CW | FCGCW75 | n/a | Black | M75 | 1 | ||
| Cable Gland CW | FCGCW90 | n/a | Black | M90 | 1 | ||
| Cable Gland A2 | FCGA220S | Brass | n/a | 20s | 2 | ||
| Cable Gland A2 | FCGA220 | Brass | n/a | 20 | 2 | ||
| Cable Gland A2 | FCGA225 | Brass | n/a | 25 | 2 | ||
| Cable Gland A2 | FCGA232 | Brass | n/a | 32 | 2 | ||
| Cable Gland A2 | FCGA240 | Brass | n/a | 40 | 2 | ||
| Cable Gland A2 | FCGA250S | Brass | n/a | 50s | 2 | ||
| Cable Gland A2 | FCGA250 | Brass | n/a | 50 | 2 | ||
| Cable Gland A2 | FCGA263S | Brass | n/a | 63s | 2 | ||
| Cable Gland A2 | FCGA263 | Brass | n/a | 63 | 2 | ||
| Cable Gland A2 | FCGA275S | Brass | n/a | 75s | 2 | ||
| Cable Gland A2 | FCGA275 | Brass | n/a | 75 | 2 | ||
| GM-FS Nylon Locknut | HUMLECM12MNLBK0 | n/a | Black | M12 | 10 | ||
| GM-FS Nylon Locknut | HUMLECM12MNLGR0 | n/a | Grey | M12 | 10 | ||
| GM-FS Nylon Locknut | HUMLECM16MNLBK0 | n/a | Black | M16 | 10 | ||
| GM-FS Nylon Locknut | HUMLECM16MNLGR0 | n/a | Grey | M16 | 10 | ||
| GM-FS Nylon Locknut | HUMLECM20MNLBK0 | n/a | Black | M20 | 10 | ||
| GM-FS Nylon Locknut | HUMLECM20MNLGR0 | n/a | Grey | M20 | 10 | ||
| GM-FS Nylon Locknut | HUMLECM25MNLBK0 | n/a | Black | M25 | 10 | ||
| GM-FS Nylon Locknut | HUMLECM25MNLGR0 | n/a | Grey | M25 | 10 | ||
| GM-FS Nylon Locknut | HUMLECM32MNLBK0 | n/a | Black | M32 | 10 | ||
| GM-FS Nylon Locknut | HUMLECM32MNLGR0 | n/a | Grey | M32 | 10 | ||
| GM-FS Nylon Locknut | HUMLECM40MNLBK0 | n/a | Black | M40 | 2 | ||
| GM-FS Nylon Locknut | HUMLECM40MNLGR0 | n/a | Grey | M40 | 2 | ||
| GM-FS Nylon Locknut | HUMLECM50MNLBK0 | n/a | Black | M50 | 2 | ||
| GM-FS Nylon Locknut | HUMLECM50MNLGR0 | n/a | Grey | M50 | 2 | ||
| GM-FS Nylon Locknut | HUMLECM63MNLBK0 | n/a | Black | M63 | 2 | ||
| GM-FS Nylon Locknut | HUMLECM63MNLGR0 | n/a | Grey | M63 | 2 | ||
| GM-EMV Earthing Locknut | HUMLECM12MNP000 | n/a | n/a | M12 | 10 | ||
| GM-EMV Earthing Locknut | HUMLECM16MNP000 | n/a | n/a | M16 | 10 | ||
| GM-EMV Earthing Locknut | HUMLECM20MNP000 | n/a | n/a | M20 | 10 | ||
| GM-EMV Earthing Locknut | HUMLECM25MNP000 | n/a | n/a | M25 | 10 | ||
| GM-EMV Earthing Locknut | HUMLECM32MNP000 | n/a | n/a | M32 | 10 | ||
| GM-EMV Earthing Locknut | HUMLECM40MNP000 | n/a | n/a | M40 | 2 | ||
| GM-EMV Earthing Locknut | HUMLECM50MNP000 | n/a | n/a | M50 | 2 | ||
| GM-EMV Earthing Locknut | HUMLECM63MNP000 | n/a | n/a | M63 | 2 | ||
| GM-Ms Brass Locknut | HUMLEMM12MNP000 | n/a | n/a | M12 | 10 | ||
| GM-Ms Brass Locknut | HUMLEMM16MNP000 | n/a | n/a | M16 | 10 | ||
| GM-Ms Brass Locknut | HUMLEMM20MNP000 | n/a | n/a | M20 | 10 | ||
| GM-Ms Brass Locknut | HUMLEMM25MNP000 | n/a | n/a | M25 | 10 | ||
| GM-Ms Brass Locknut | HUMLEMM32MNP000 | n/a | n/a | M32 | 10 | ||
| GM-Ms Brass Locknut | HUMLEMM40MNP000 | n/a | n/a | M40 | 2 | ||
| GM-Ms Brass Locknut | HUMLEMM50MNP000 | n/a | n/a | M50 | 2 | ||
| GM-Ms Brass Locknut | HUMLEMM63MNP000 | n/a | n/a | M63 | 2 |
