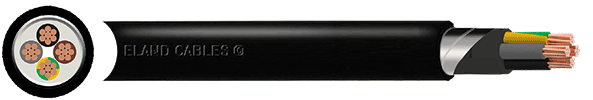

N2XBY Cable
The N2XBY cable is a European standard low voltage power cable manufactured in accordance with DIN VDE 0276-603 for installations with a rated voltage of 0.6/1kV.
N2XBY Cable Specification
The N2XBY cable is suitable for a broad range of power applications and installation environments. The N2XBY cable are used across construction projects for power distribution, with the cable suitable for dry and damp environments, including where it is buried in cable ducts. Copper cores are insulated with XLPE giving a maximum operating temperature of 90oC. The PVC outer sheathing is robust and flame retardant supporting both internal and external applications.
Like its LSZH equivalent N2XBH cable, the N2XBY cable provides mechanical protection to the conductors through the application of a double layer of galvanised steel tape (GSTA). Galvanised steel tape provides a lighter weight armoured cable than when compared to traditional steel or aluminium wires but in certain circumstances it may not be appropriate for direct burial.
Whilst the N2XBY cable is supplied with copper conductors, there is also an aluminium equivalent in both PVC and LSZH sheathing - NA2XBY and NA2XBH respectively, available upon request.
More information
N2XBY Cable Datasheets and Technical Support
As part of our range of LV armoured cable , the N2XBY cable offers a lightweight armouring when compared to the AWA and SWA of BS5467 or the flat wire armour of the N2XFGBY cable. Cable sizes, weights and electrical characteristics can be found in the attached datasheets - although should the size you requre not be listed, please contact the team who will be able to assist. In the event you require further information on the N2XBY cable or have a query on the suitability of this or any other armoured cable product, our technical team is available to provide expert advice whilst our sales team can advise on both our stockholding and any manufacturing lead times in order to best suit your project specifications and timeline.
Construction Table
N2XBY Cable
|
|
|---|---|
| VOLTAGE | 0.6/1kV |
| CONDUCTOR | Class 1 Solid Copper |
| INSULATION | XLPE (Cross-Linked Polyethylene) |
| FILLER | PVC (Polyvinyl Chloride) |
| ARMOUR | Double Galvanised Steel Tape |
| OUTER SHEATH | PVC (Polyvinyl Chloride) |
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| N2XBY Cable | B2K020025BK | 2 | 2.5mm² | Black | ||
| N2XBY Cable | B2K020040BK | 2 | 4mm² | Black | ||
| N2XBY Cable | B2K020060BK | 2 | 6mm² | Black | ||
| N2XBY Cable | B2K02010BK | 2 | 10mm² | Black | ||
| N2XBY Cable | B2K02016BK | 2 | 16mm² | Black | ||
| N2XBY Cable | B2K02025BK | 2 | 25mm² | Black | ||
| N2XBY Cable | B2K02035BK | 2 | 35mm² | Black | ||
| N2XBY Cable | B2K02050BK | 2 | 50mm² | Black | ||
| N2XBY Cable | B2K02070BK | 2 | 70mm² | Black | ||
| N2XBY Cable | B2K02095BK | 2 | 95mm² | Black | ||
| N2XBY Cable | B2K030015BK | 3 | 1.5mm² | Black | ||
| N2XBY Cable | B2K030025BK | 3 | 2.5mm² | Black | ||
| N2XBY Cable | B2K030040BK | 3 | 4mm² | Black | ||
| N2XBY Cable | B2K030060BK | 3 | 6mm² | Black | ||
| N2XBY Cable | B2K03010BK | 3 | 10mm² | Black | ||
| N2XBY Cable | B2K03016BK | 3 | 16mm² | Black | ||
| N2XBY Cable | B2K0316/10BK | 3+ | 16/10mm² | Black | ||
| N2XBY Cable | B2K03025BK | 3 | 25mm² | Black | ||
| N2XBY Cable | B2K03025/16BK | 3+ | 25/16mm² | Black | ||
| N2XBY Cable | B2K03035BK | 3 | 35mm² | Black | ||
| N2XBY Cable | B2K03035/16BK | 3+ | 35/16mm² | Black | ||
| N2XBY Cable | B2K03050BK | 3 | 50mm² | Black | ||
| N2XBY Cable | B2K03050/25BK | 3+ | 50/25mm² | Black | ||
| N2XBY Cable | B2K03070BK | 3 | 70mm² | Black | ||
| N2XBY Cable | B2K03070/35BK | 3+ | 70/35mm² | Black | ||
| N2XBY Cable | B2K03095BK | 3 | 95mm² | Black | ||
| N2XBY Cable | B2K03095/50BK | 3+ | 95/50mm² | Black | ||
| N2XBY Cable | B2K03120BK | 3 | 120mm² | Black | ||
| N2XBY Cable | B2K03150BK | 3 | 150mm² | Black | ||
| N2XBY Cable | B2K03185BK | 3 | 185mm² | Black | ||
| N2XBY Cable | B2K03240BK | 3 | 240mm² | Black | ||
| N2XBY Cable | B2K040015BK | 4 | 1.5mm² | Black | ||
| N2XBY Cable | B2K040025BK | 4 | 2.5mm² | Black | ||
| N2XBY Cable | B2K040040BK | 4 | 4mm² | Black | ||
| N2XBY Cable | B2K040060BK | 4 | 6mm² | Black | ||
| N2XBY Cable | B2K04010BK | 4 | 10mm² | Black | ||
| N2XBY Cable | B2K04016BK | 4 | 16mm² | Black | ||
| N2XBY Cable | B2K04025BK | 4 | 25mm² | Black | ||
| N2XBY Cable | B2K04035BK | 4 | 35mm² | Black | ||
| N2XBY Cable | B2K04050BK | 4 | 50mm² | Black | ||
| N2XBY Cable | B2K04070BK | 4 | 70mm² | Black | ||
| N2XBY Cable | B2K04095BK | 4 | 95mm² | Black | ||
| N2XBY Cable | B2K04120BK | 4 | 120mm² | Black | ||
| N2XBY Cable | B2K03120/70BK | 4 | 120/70mm² | Black | ||
| N2XBY Cable | B2K04150BK | 4 | 150mm² | Black | ||
| N2XBY Cable | B2K03150/70BK | 4 | 150/70mm² | Black | ||
| N2XBY Cable | B2K04185BK | 4 | 185mm² | Black | ||
| N2XBY Cable | B2K03185/95BK | 4 | 185/95mm² | Black | ||
| N2XBY Cable | B2K04240BK | 4 | 240mm² | Black | ||
| N2XBY Cable | B2K03240/120BK | 4 | 240/120mm² | Black | ||
| N2XBY Cable | B2K050015BK | 5 | 1.5mm² | Black | ||
| N2XBY Cable | B2K050025BK | 5 | 2.5mm² | Black | ||
| N2XBY Cable | B2K050040BK | 5 | 4mm² | Black | ||
| N2XBY Cable | B2K050060BK | 5 | 6mm² | Black | ||
| N2XBY Cable | B2K05010BK | 5 | 10mm² | Black | ||
| N2XBY Cable | B2K05016BK | 5 | 16mm² | Black | ||
| N2XBY Cable | B2K05025BK | 5 | 25mm² | Black | ||
| N2XBY Cable | B2K05035BK | 5 | 35mm² | Black | ||
| N2XBY Cable | B2K05050BK | 5 | 50mm² | Black | ||
| N2XBY Cable | B2K05070BK | 5 | 70mm² | Black | ||
| N2XBY Cable | B2K05095BK | 5 | 95mm² | Black |
