Servo Motor Cables
Eland Cables' Servo Motor cable portfolio cover cables from both the Veriflex range and our wider industrial range. These cables often offer EMC electromagnetic compatibility properties to help shield and protect the integrity of the signals they transmit.
Servo Motor Cable Specification
These cables are designed for the quick connection of Computer Numerical Control (CNC) machines, intelligent servo drives and temperature control units. Their industrial applications cover mills, automation plants, and other manufacturing instances where these control cables are invaluable.
ROZ1-K and Veriflex 2XSLCH LSZH Servo Cables
European servo cables are generally manufactured with PVC sheathing but in recognition of the requirements and specification preferences of the UK market, Eland Cables have developed the 2XSLCH Servo Motor Cable and offer the ROZ1-K EMC Servo Cable to provide the precise performance with an LSZH low smoke zero halogen sheathing instead. Like the ROZ1-K cable, the 2XSLCH cable is UV resistant but not recommended for direct burial, as well as being suitable for installation in trays or in trunking. The ROZ1-K cable offers to additional benefit of hydrocarbon resistance to NF-M87-202, making it suited to applications in the Oil, Gas & Petrochemicals industry.
Servo Cables from Stock
Our Veriflex 2XSLCH LSZH Servo Motor Cable is available direct from stock for next day delivery. This fast delivery is part of the Veriflex commitment to compliance and customer service for European control cables. Our Servo CP cable is available within 4-7 days of confirmed order.
In practical applications there is also crossover with VFD Variable Frequency Drive cables. A PE/PVC alternative to the 2XSLCH cable is also available - the 2YSLCY cable for variable frequency drives (VFD). For support with specification, please contact one of the team.
Construction Table

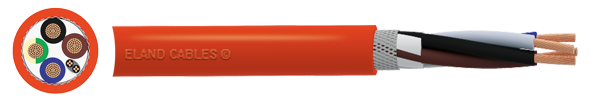

Servo Cable CP
|
Veriflex 2XSL(st)CH LSZH Servo Cable
|

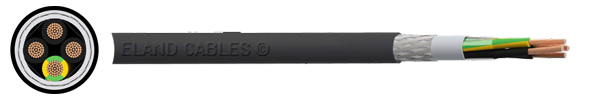

ROZ1-K EMC Servo Cable
|
|
|---|---|---|---|
| VOLTAGE | 0.6/1kV | ||
| CONDUCTOR | Class 6 Extra Flexible Copper | Class 5 Flexible Stranded Copper | |
| INSULATION | PP (Polypropylen) | XLPE (Cross-linked Polyethylene) | |
| SEPARATOR | - | PET (Polyester Tape) | |
| SCREEN 1 | - | Al/PET (Aluminium Polyester Tape) | |
| SCREEN | TCWB (Tinned Copper Wire Braid) | ||
| OUTER SHEATH | PUR (Polyurethane) | LSZH (Low Smoke Zero Halogen) | |
Servo Motor Cables
YOUR CABLE OPTIONS
Use the FastQuote filters to find the exact cable specifications you need.
Need a bespoke solution? Learn more about customised cables.
| Product name | Part No | Cores | Nominal cross-sectional area (mm²) | Sheath colour | Length (m) | |
|---|---|---|---|---|---|---|
| Servo Cable CP | V5004031OR000 | 4 | 1.5mm² | Orange | ||
| Servo Cable CP | V5004041OR000 | 4 | 2.5mm² | Orange | ||
| Servo Cable CP | V5004051OR000 | 4 | 4mm² | Orange | ||
| Servo Cable CP | V5004061OR000 | 4 | 6mm² | Orange | ||
| Servo Cable CP | V5004071OR000 | 4 | 10mm² | Orange | ||
| Servo Cable CP | V5004081OR000 | 4 | 16mm² | Orange | ||
| Servo Cable CP | V5004091OR000 | 4 | 25mm² | Orange | ||
| Servo Cable CP | V5004101OR000 | 4 | 35mm² | Orange | ||
| Servo Cable CP | V5004111OR000 | 4 | 50mm² | Orange | ||
| Servo Cable CP | V5004121OR000 | 4 | 70mm² | Orange | ||
| Servo Cable CP | V5004033OR000 | 4+2 | 1.5mm² | Orange | ||
| Servo Cable CP | V5004043OR000 | 4+2 | 2.5mm² | Orange | ||
| Servo Cable CP | V5004053OR000 | 4+2 | 4mm² | Orange | ||
| Servo Cable CP | V5004063OR000 | 4+2 | 6mm² | Orange | ||
| Servo Cable CP | V5004073OR000 | 4+2 | 10mm² | Orange | ||
| Servo Cable CP | V5004083OR000 | 4+2 | 16mm² | Orange | ||
| Servo Cable CP | V5004093OR000 | 4+2 | 25mm² | Orange | ||
| Servo Cable CP | V5004103OR000 | 4+2 | 35mm² | Orange | ||
| Servo Cable CP | V5004113OR000 | 4+2 | 50mm² | Orange | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404032BK000 | 4 | 1.5mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404042BK000 | 4 | 2.5mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404052BK000 | 4 | 4mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404062BK000 | 4 | 6mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404072BK000 | 4 | 10mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404082BK000 | 4 | 16mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404092BK000 | 4 | 25mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404102BK000 | 4 | 35mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404112BK000 | 4 | 50mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404122BK000 | 4 | 70mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404132BK000 | 4 | 95mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404142BK000 | 4 | 120mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404152BK000 | 4 | 150mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404162BK000 | 4 | 185mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0404172BK000 | 4 | 240mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403032BK000 | 3+3 | 1.5mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403042BK000 | 3+3 | 2.5mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403052BK000 | 3+3 | 4mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403062BK000 | 3+3 | 6mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403072BK000 | 3+3 | 10mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403082BK000 | 3+3 | 16mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403092BK000 | 3+3 | 25mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403102BK000 | 3+3 | 35mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403112BK000 | 3+3 | 50mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403122BK000 | 3+3 | 70mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403132BK000 | 3+3 | 95mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403142BK000 | 3+3 | 120mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403152BK000 | 3+3 | 150mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403162BK000 | 3+3 | 185mm² | Black | ||
| Veriflex 2XSL(st)CH LSZH Servo Cable | V0403172BK000 | 3+3 | 240mm² | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+30015/0.25 | 3+3 | 1.5+0.25mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+30025/0.5 | 3+3 | 2.5+0.5mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+30040/0.75 | 3+3 | 4+0.75mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+30060/1 | 3+3 | 6+1mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+3010/1.5 | 3+3 | 10+1.5mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+3016/2.5 | 3+3 | 16+2.5mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+3025/4 | 3+3 | 25+4mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+3035/6 | 3+3 | 35+6mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+3050/10 | 3+3 | 50+10mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+3070/10 | 3+3 | 70+10mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+3095/16 | 3+3 | 95+16mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+3120/16 | 3+3 | 120+16mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+3150/25 | 3+3 | 150+25mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+3185/35 | 3+3 | 185+35mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R3+3240/50 | 3+3 | 240+50mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R040015 | 4 | 1.5mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R040025 | 4 | 2.5mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R040040 | 4 | 4mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R040060 | 4 | 6mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R04010 | 4 | 10mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R04016 | 4 | 16mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R04025 | 4 | 25mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R04035 | 4 | 35mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R04050 | 4 | 50mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R04070 | 4 | 70mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R04095 | 4 | 95mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R04120 | 4 | 120mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R04150 | 4 | 150mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R04185 | 4 | 185mm2 | Black | ||
| ROZ1-K EMC Servo Cable | B9R04240 | 4 | 240mm2 | Black |
